I am done with the regulator. It was very dirty.
The return side.

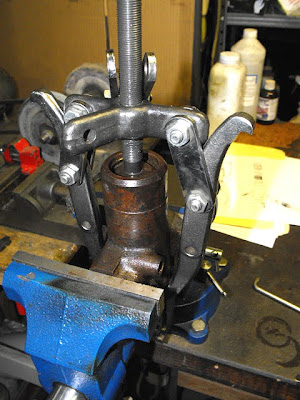

Removing the C clip holding the main spring was no walk in the park.
Dirty as expected. The piston was not free and hard to remove.
I have all my O rings in bins. The O rings I used were 1.9x6.8mm, 2-027 and a 2-123.
The return side once cleaned up.
Rustoleum "Hunter Green" is pretty close to the Citroen color. I have turned the return 180 degrees to accommodate the relocation.
The return side.
Removing the C clip holding the main spring was no walk in the park.
Dirty as expected. The piston was not free and hard to remove.
I have all my O rings in bins. The O rings I used were 1.9x6.8mm, 2-027 and a 2-123.
The return side once cleaned up.
Rustoleum "Hunter Green" is pretty close to the Citroen color. I have turned the return 180 degrees to accommodate the relocation.
